Ideatherapy RLPRO Series Red Light Therapy Panels: Professional-Grade Healing for Home and Clinic
In the evolving world of light therapy, the Ideatherapy RLPRO Series stands out as a line of professional-grade panels designed to deliver powerful, targeted photobiomodulation (PBM) for a wide range of therapeutic applications. Engineered with both clinical efficacy and user convenience in mind, these panels are built for individuals and practitioners who are serious about harnessing the science of red and near-infrared light.

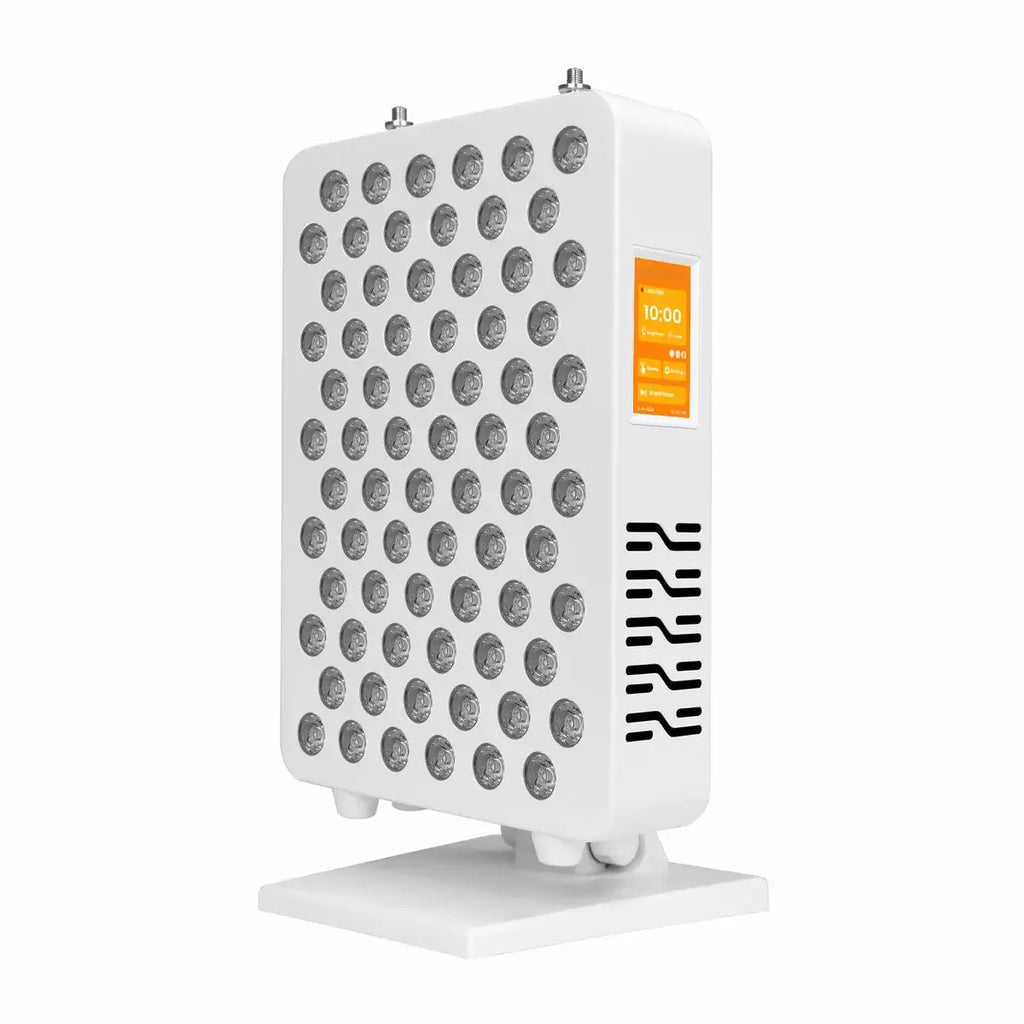

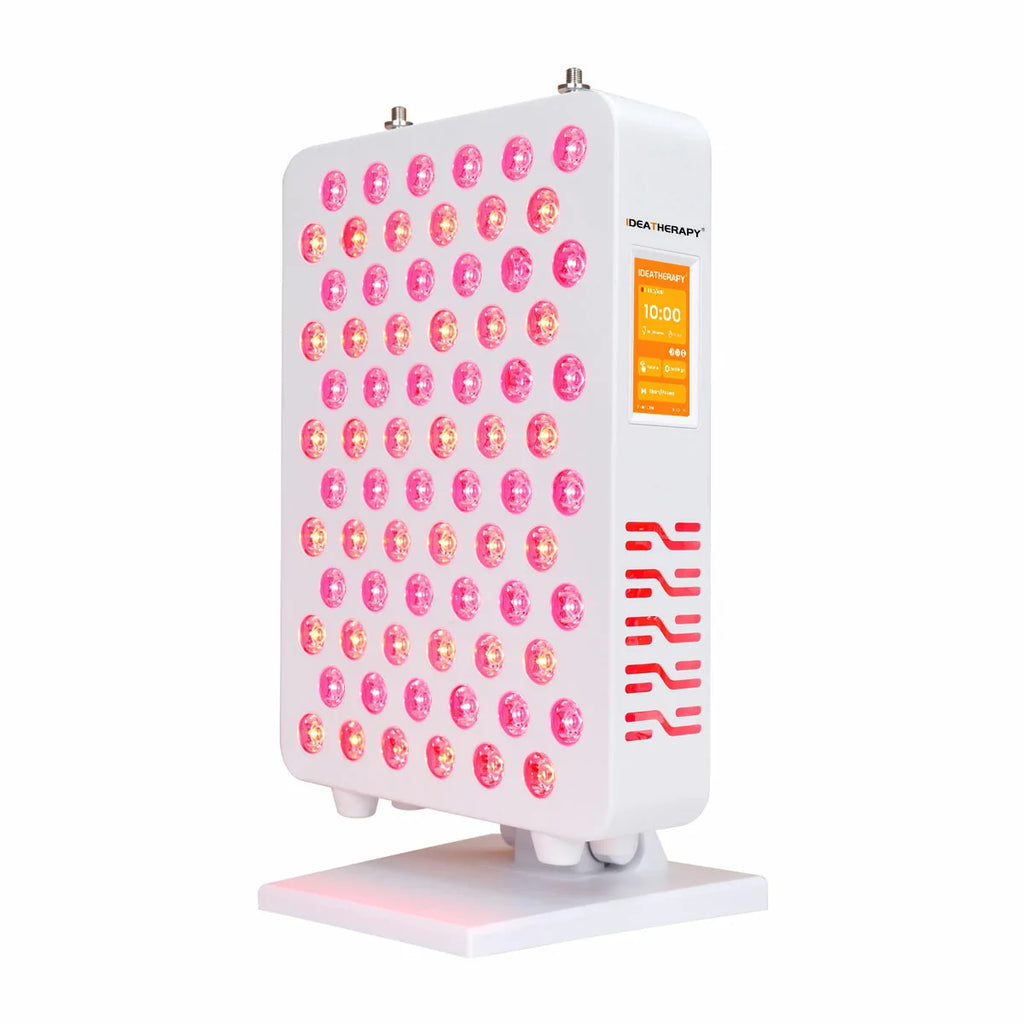

RLPRO100 Overview
The Ideatherapy RLPRO Series comprises high-intensity red light therapy panels that emit specific wavelengths of red (660 nm) and near-infrared (850 nm) light. This light energy penetrates the skin to stimulate cellular energy production, reduce inflammation, and accelerate the body's natural healing processes. The series offers multiple sizes to suit different needs, from targeted treatment to full-body sessions.
Key Features & Technological Advantages
-
Dual-Wavelength Technology:ย Each panel is equipped with a combination ofย 660 nm (Red) and 850 nm (Near-Infrared) LEDs. This allows for versatile treatment:
-
660 nm (Red):ย Penetrates superficially, ideal for skin health, wound healing, and reducing inflammation in surface-level tissues.
-
850 nm (Near-Infrared):ย Penetrates deeply into muscles, joints, and bones, perfect for pain relief, muscle recovery, and deep-tissue repair.
-
-
High-Power Density & Optimal Irradiance:ย The RLPRO panels are engineered for high irradiance (power output measured in mW/cmยฒ). This means you receive a potent, effective dose of light in a shorter amount of time compared to lower-powered devices, making each session more efficient.
-
Flicker-Free & Zero EMF Emission:ย Designed with user safety and comfort in mind, the panels produce a stable, flicker-free light beam and emit zero harmful electromagnetic fields (EMF) at the treatment surface.
-
Medical-Grade LEDs:ย The series utilizes top-tier, medical-grade LEDs from leading manufacturers to ensure consistent wavelength accuracy, long lifespan, and reliable performance.
-
Robust & User-Friendly Design:
-
Durable Metal Housing:ย Built with a sturdy aluminum alloy frame, the panels are designed to last.
-

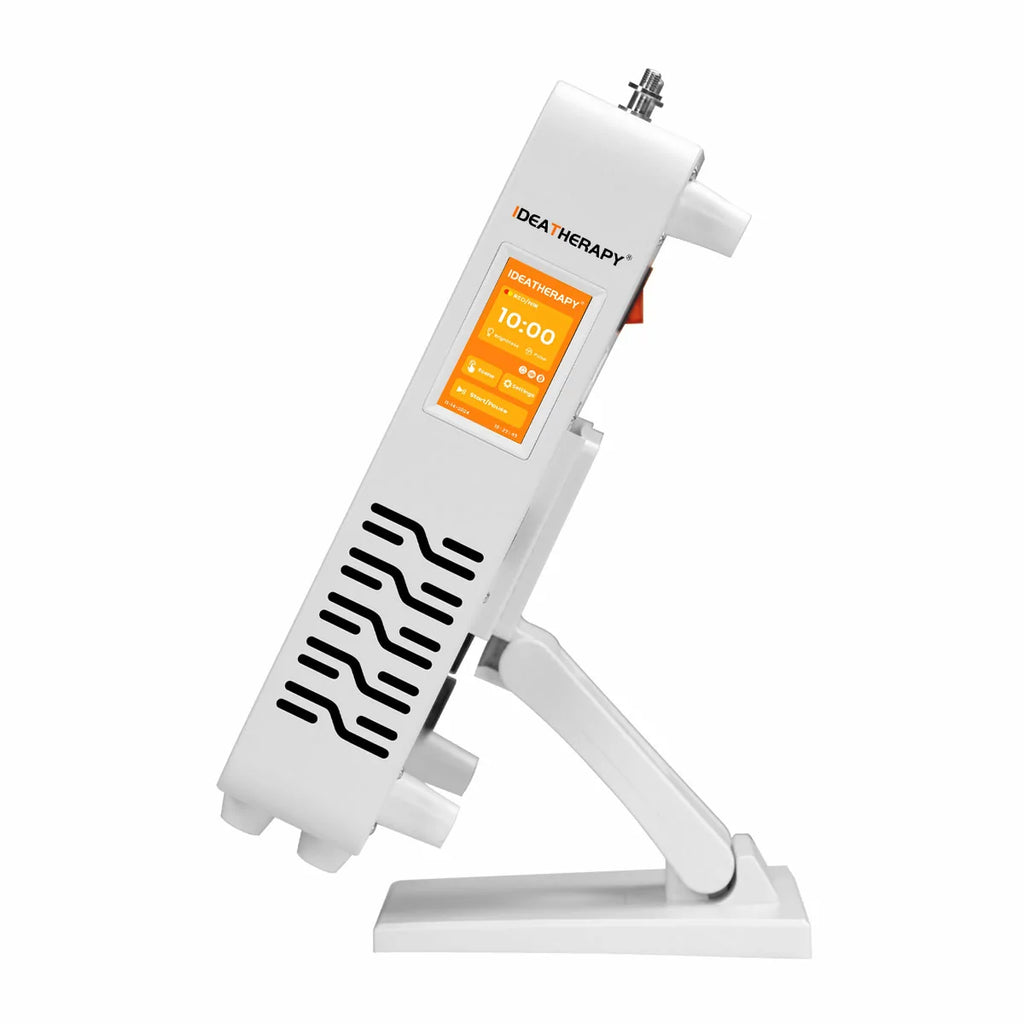

Adjustable Stands & Mounting Options:ย The panels can be used with a flexible stand for hands-free operation, mounted on a wall, or used at an angle on a tabletop, providing maximum versatility for treating any area of the body.
-
Built-in Timer:ย An integrated digital timer allows for precise session control, ensuring you get the correct treatment duration every time.
-
Protective Glasses:ย Included safety glasses protect your eyes during treatment.
-
How It Works: The Science of Photobiomodulation
Red and near-infrared light therapy works at a cellular level. The photons of light are absorbed by the mitochondria within your cells, which are often called the cell's "powerplants." This absorption stimulates the mitochondria to produce more adenosine triphosphate (ATP), the fundamental energy currency of all cells.
With more ATP energy, cells can function more efficiently, repair themselves faster, and reduce oxidative stress. This cascade of biological effects leads to the wide-ranging therapeutic benefits associated with red light therapy.
| LEDs | 72pcs LED dual Chips |
|---|---|
| Input Voltage | 100-240V AC |
| Working Current | 1.00Aยฑ5%/220V / 1.67Aยฑ5%/110V |
| Frequency | 50/60Hz |
| Lens Angle | 30ยฐ/60ยฐ |
| Dimensions (L x W x H) | 320*230*65mm |
| Spectrum Range | 480 |
| Control Interface | Touch Screen |
| Flicker Range | Support 1-10000Hz with individual wavelength adjustable |
| Dimming Control | 1~100% with individual wavelength adjustable |
| Shell Material | Iron |
| Shell Color | White |
| Package Includes | 1pc light + 1pc wire with plug + 1pc manual + 1pc glasses |
| Gross Weight | 3.9kg/pc+/-0.5kg |
| Actual Power Output | 120W+/-10% |
| Remote Control | 2.4G remote supported |
| Connectivity | Bluetooth & APP available |
| Specification | RIPRO100 | RIPRO200 | RIPRO300 | RIPRO600 | RIPRO1000 | RIPRO1200 |
|---|---|---|---|---|---|---|
| Number of LEDs | 72 | 144 | 216 | 432 | 720 | 864 |
| Number of Wavelengths | 8 | 8 | 8 | 8 | 8 | 8 |
| APP Function | Supported | Supported | Supported | Supported | Supported | Supported |
| Brightness Control | 8 wavelengths individually 0-100% | 8 wavelengths individually 0-100% | 8 wavelengths individually 0-100% | 8 wavelengths individually 0-100% | 8 wavelengths individually 0-100% | 8 wavelengths individually 0-100% |
| Pulsing Frequency | 1-10000hz individual control | 1-10000hz individual control | 1-10000hz individual control | 1-10000hz individual control | 1-10000hz individual control | 1-10000hz individual control |
| Dimensions | 32ร23ร6.5cm | 64ร23ร6.5cm | 92ร23ร6.5cm | 92ร42ร7cm | 150.8ร42ร7cm | 180ร42ร7cm |
| Product Weight | 3.9kgยฑ0.5kg | 6.0kgยฑ0.5kg | 8.5kgยฑ0.5kg | 15.3kgยฑ0.5kg | 25.3kgยฑ0.5kg | 29.4kgยฑ0.5kg |
| Actual Power | 120W | 240W | 360W | 720W | 1200W | 1440W |
| Lens | 30 degree & customized | 30 degree & customized | 30 degree & customized | 30 degree & customized | 30 degree & customized | 30 degree & customized |
| Irradiance Data (R+NIR @ 6inch) | โฅ157.6 mW/cmยฒ | โฅ163.6 mW/cmยฒ | โฅ175.1 mW/cmยฒ | โฅ181.3 mW/cmยฒ | โฅ193.6 mW/cmยฒ | โฅ197.2 mW/cmยฒ |
| Rated Lifespan | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
| Best For | Targeted Treatment | Half Body | Mostly Full Body | Full Body | Full Body | Full Body |
Benefits at Home
Frequently asked questions
Q1: Are you a manufacturer or a trading company?
A: We are a manufacturer, providing OEM & ODM service. Our design department, engineering department, sales department and production merchandiser to serve you together. Welcome to contact us anytime.
Q2. What medical certifications do you have?
A: FDA 510(k), TGA, MDL, UL IEC 60601-1, ETL, SAA, CE, ROHS, FCC, ISO13485, and MDSAP/Customized
Q3. What is the difference between red and near infrared light therapy?
A: Red and near infrared light therapy are exactly the same except for two differences: Red light is visible and near infrared
light is invisible. Near infrared light penetrates into the body deeper than red light.
Q4. How long does it take for red light therapy to work?
Our products are manufactured both locally and globally. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.
Q5. Do I need to continue to use the light as much when I start seeing results?
Yes. Just because you're seeing results, it doesn't mean that your skin cells are finished doing their jobs. It's just that the
results of their efforts are starting to become something you can see and/or feel. Keep up the treatments until you reach your goal level of results. Then you can start a weekly maintenance schedule.
